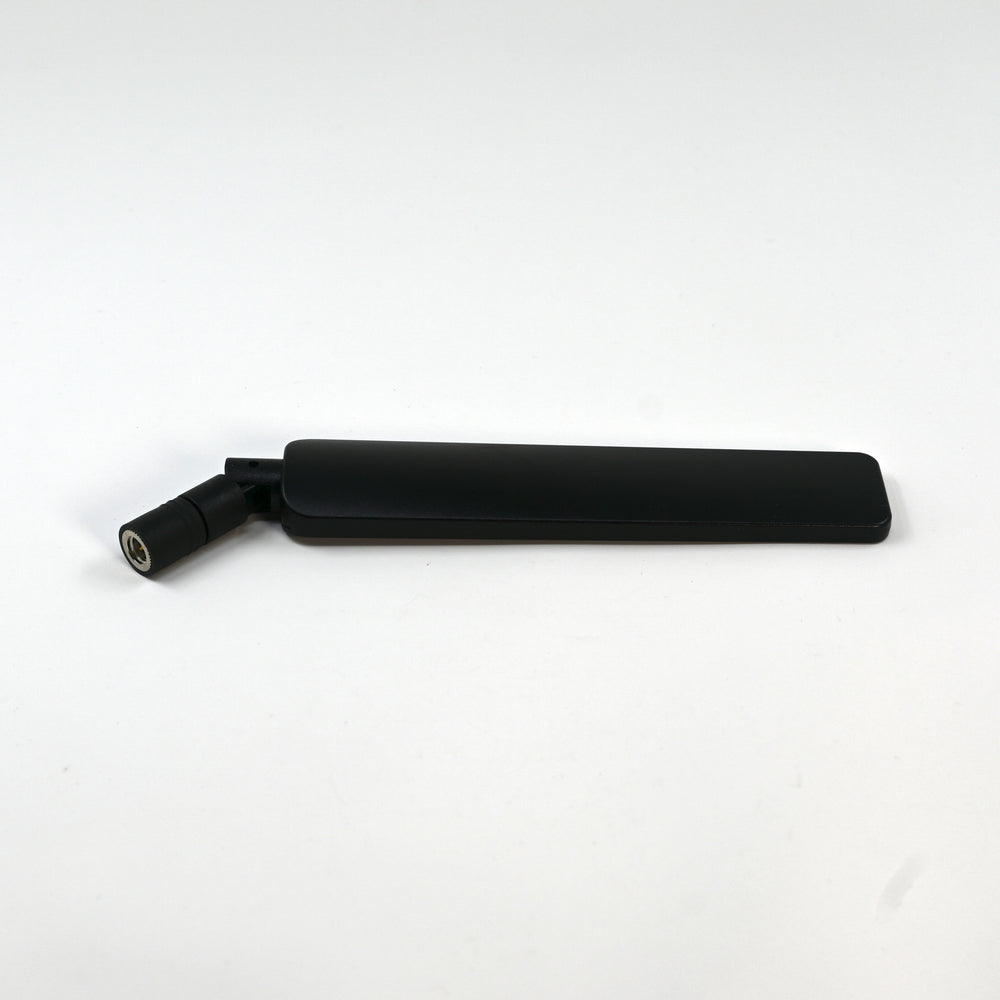

Particle External LTE/NTN Antenna (PARANTCN1) [x1]

SKU: PARANTCN1EA In stock
$ 12.50

Description

The Particle External wide band LTE/NTN Antenna is an IP67-rated outdoor antenna, purpose-built for deployments exposed to the elements. It is pre-certified for use with the following Particle modules:

  • M-SoM - M635e

Constructed on an FR4 substrate inside a rugged weatherproof housing, this antenna measures 172.5 x 27.9 mm and terminates directly in a female SMA connector, making it ideal for direct-mount enclosure applications. To connect this antenna to a Particle module, a U.FL to SMA adapter is required.

Please note: Use of a module and antenna combination different from the ones listed above may violate regulatory compliance and require additional certification. Please refer to our antenna documentation for additional information regarding regulatory compliance and certification of Particle modules.

Specs:

  • Antenna Type: Omnidirectional
  • Frequency / band: 617 MHz - 5925 MHz
  • IP Rating: IP67 (suitable for outdoor deployments)
  • Impedance: 50 Ohm
  • Operating temperature: -20°C to +60°C
  • Storage temperature: -40°C to +70°C
  • RoHS Compliant

Mechanical Specs:

  • Dimensions: 172.5 x 27.9 mm
  • Mounting: Direct screw-on to a male SMA connector
  • Substrate: FR4
  • Connector type: SMA (female)
  • Cable: None - direct-mount assembly

Required accessory: U.FL to SMA adapter for connection to Particle modules.

Datasheet
