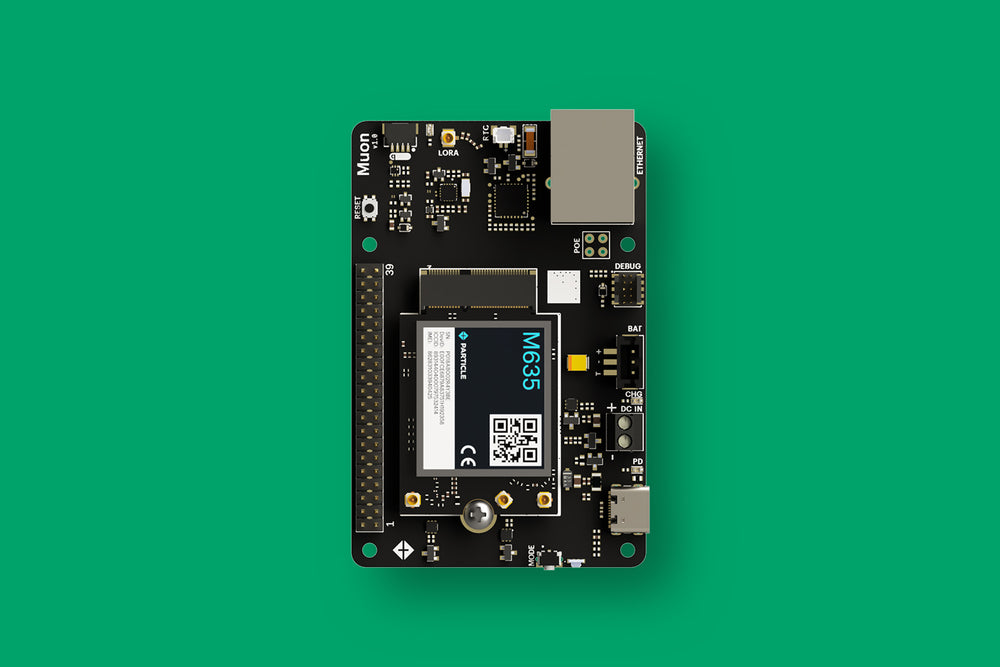

Particle Muon Development Board (MSoM + Carrier Board Kit)
Simple to start multi-radio connectivity
Meet Muon, Particle’s new multi-radio development board designed to simplify and revolutionize connectivity. It's the first and only product to combine a full suite of popular radios-- built into the M-SoM are cellular, Wi-Fi, BLE, GNSS, NTN satellite (depending on M-SoM inserted), and then the Muon additionally brings LoRaWAN and Ethernet.
Instead of dealing with the complexity and cost of managing different SKUs and carrying a variety of products, with Muon you have everything in one streamlined solution. It's a game-changer that removes the barriers to leveraging diverse radio technologies and simplifies deployment and management. Whether it's for tracking, monitoring, or communication, Muon offers unmatched connectivity capabilities in a single, hassle-free package.
Raspberry Pi form factor
The Muon is compatible with the Raspberry Pi ecosystem, supporting a wide range of accessories including expansion cards/hats and enclosures. It will enable Muon to integrate seamlessly with a broader range of projects and applications, increasing the possibilities of what you can do with it!
Prototype with the Muon, scale with the M-SoM
Once you’ve built your prototypes and are ready to scale up your operation, you can do so with ease by switching to the M-SoM, our production-grade system-on-module. Simply port your firmware using the hardware abstraction layer on our Device OS and transition seamlessly from the Muon to the M-SoM, reducing your bill of materials & speeding up development time.
Powered by the Particle IoT Platform-as-a-Service
Particle’s Muon is backed by the full power of the Particle IoT Platform-as-a-Service, empowering you to reliably connect, manage, and deploy IoT products with pre-integrated cloud connectivity and messaging, out-of-the-box OTA updates, and included device management and development tools.
Contents
- Plastic case for easy prototype setup
- Muon Carrier Board
- M-SoM
- Associated antennas
- PARANTGN1, GNSS antenna
- PARANTCW1, wide band cellular antenna
- PARANTWM1, Wi-Fi/BLE antenna
- LoRaWAN antenna
Specs
-
Muon
- USB-C
- VIN (6-12 VDC)
- LoRa radio
- QWIIC connector
- Onboard Temperature sensor
- Configuration EEPROM
- Real-time clock and watchdog chip
- RGB status LED
- Power input options
- Mode & Reset buttons
-
M-SoM M635
- Arm Cortex-M33 CPU, 200MHz
- Built-in GNSS
- BLE 5 using same antenna as Wi-Fi
- M.2 SoM form factor, like the B-SoM
- Realtek RTL8722DM MCU (BLE and Wi-Fi)
- Cellular modem supports LTE CAT 1 with Satellite fallback
- 802.11a/b/g/n Wi-Fi, 2.4GHz and 5GHz
- 2048KB (2MB) user application maximum size
- 3072KB (3MB) of RAM available to user applications
Notes: Updated to Raspberry Pi form factor June 2024
